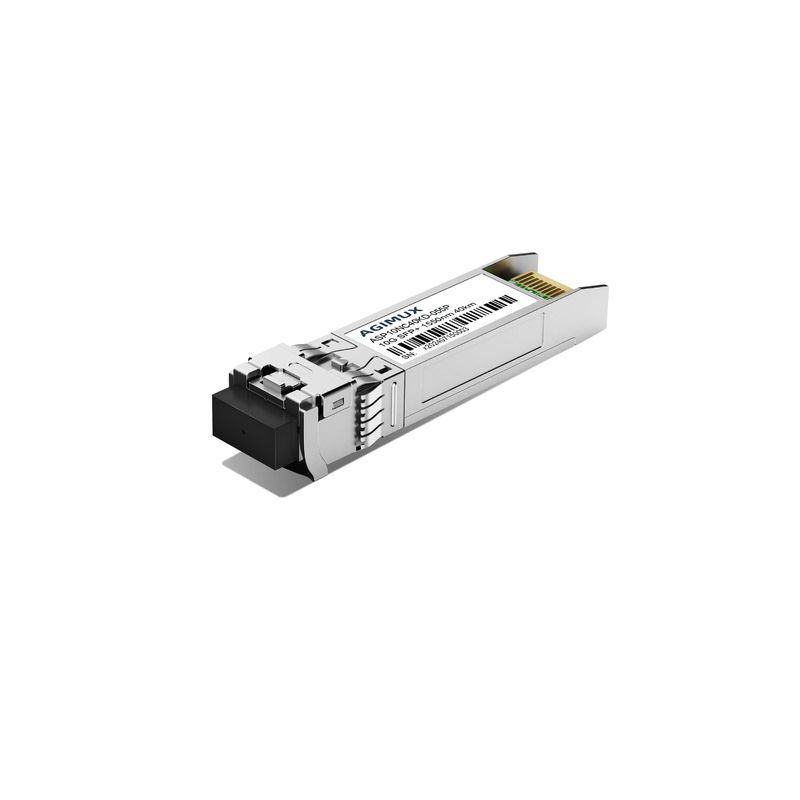

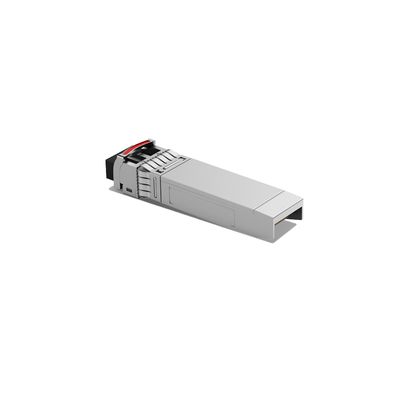

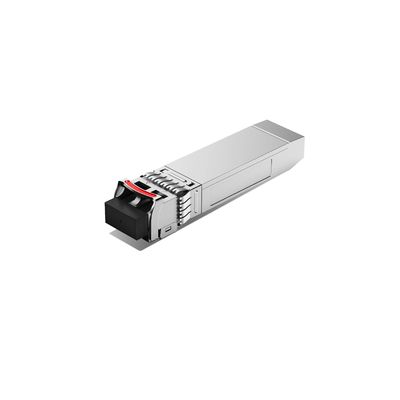

SFP+10G 1550nm 40Km CDR/NCDR Optical transceiver module

SFP+10G 1550nm 40Km CDR/NCDR Optical transceiver module

Brand Name: Agimux
Model Number: ASP10RC40KD-055P/ASP10NC40KD-055P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
SFP+
Rate:
10G
Distance:
40km
Wavelength:
1550nm
Temperature:
0°C To 70°C/-40°C To 85°C
Tx Output:
-4.7~+4dBm
Rx Input:
-15.8~+1dBm/-14dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70/-40~85

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:9.9~11.3G(With CDR),1~11G(Without CDR)

Transmitter: EML

Receiver: PIN

Compliant with RHOS 6

Link length up to 40km on SMF/MMF

LC duplex connector
