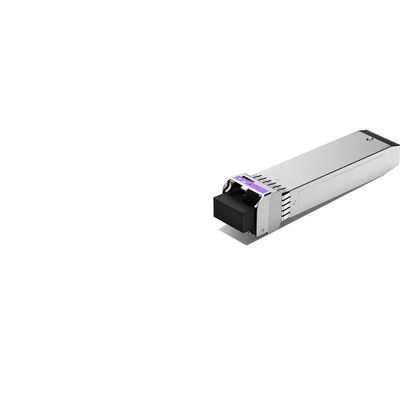

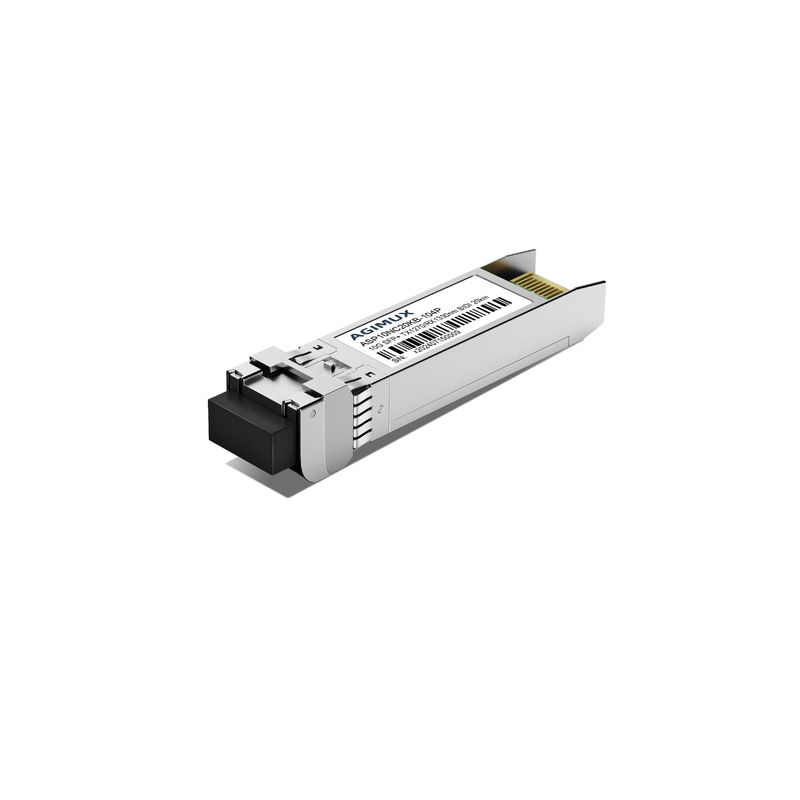

SFP+ 10G BIDI 20Km Optical transceiver module

SFP+ 10G BIDI 20Km Optical transceiver module

Brand Name: Agimux
Model Number: ASP10NC20KB-104P/ASP10NC20KB-401P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
SFP+
Data Rate:
10G
Wavelength:
1271/1331nm
Distance:
20km
Temperature:
0°C To 70°C
Tx Output:
-6~+3dBm
Rx Input:
-16~+0.5dBm/-16dBm
Transmitter:
DML
Receiver:
PIN
DDL:
Yes
Packaging Details:
Carton
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:10G

Transmitter: DML

Receiver: PIN

Compliant with RHOS 6

Link length up to 20km on SMF/MMF

LC connector
