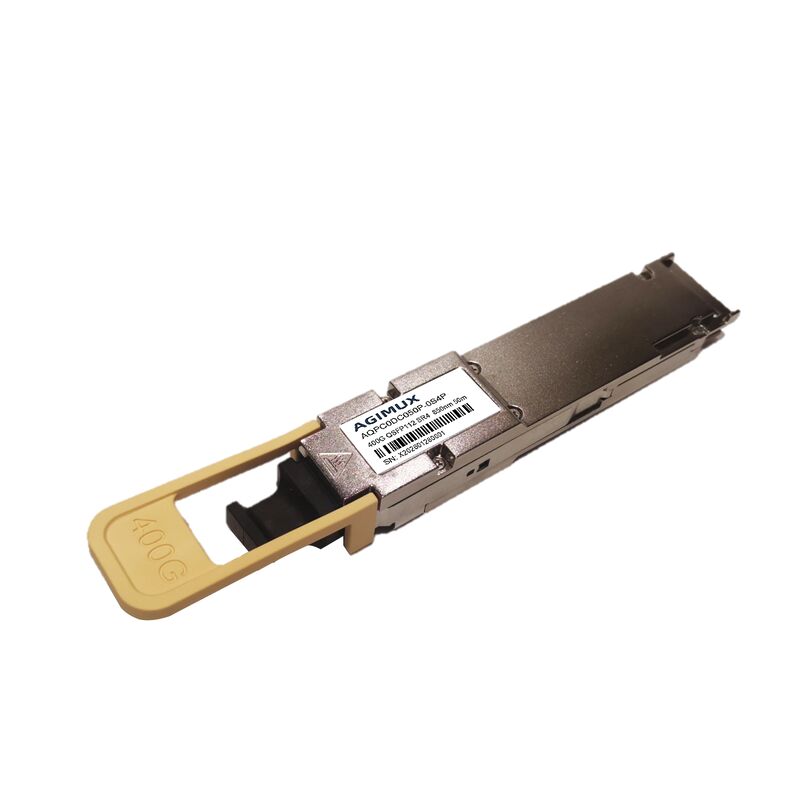

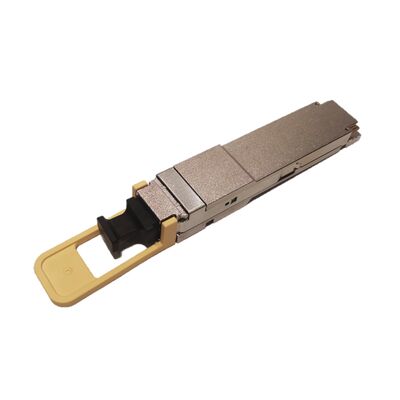

QSFP112 400G SR4 850nm 100M Optical Transceiver Module

QSFP112 400G SR4 850nm 100M Optical Transceiver Module

Brand Name: Agimux
Model Number: AQPC0DC050P-0S4P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
QSFP112
Data Rate:
400G
Wavelength:
850nm
Distance:
100m
Temperature:
0°C To 70°C
Tx Output:
-4.6~+4.0dBm
Receiving Sensitivity:
-6.3~+4/-4.4dBm
Transmitter:
VSCEL
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

QSFP112 MSA compliant

IEEE 802.3ck 400GAUI-4 standard compliant

Case Temperature range: 0~70

Signle 3.3V power supply

Data Rate Range:400G

Maximum power dissipation ≤ 8 W

Maximum link length of 60 m OM3, 100 m OM4 with FEC

Single MPO-12/APC receptacle
