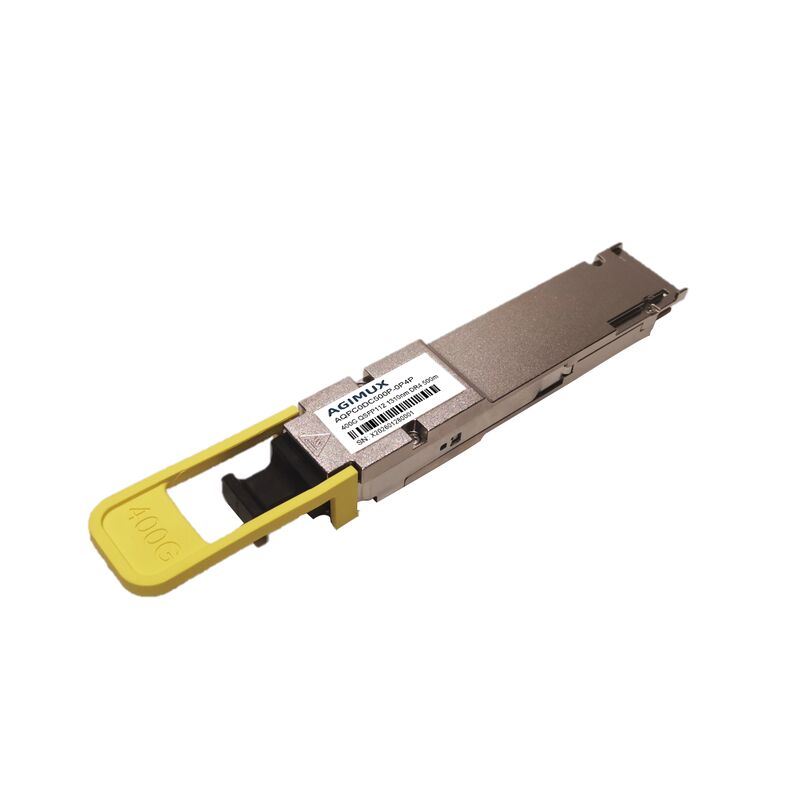

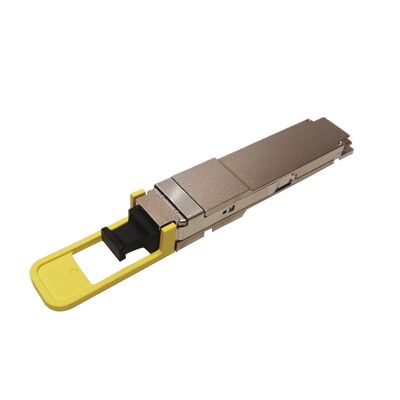

QSFP112 400G DR4 1310nm 500M Optical Transceiver Module

QSFP112 400G DR4 1310nm 500M Optical Transceiver Module

Brand Name: Agimux
Model Number: AQPC0DC500P-0D4P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
QSFP112
Data Rate:
400G
Wavelength:
1310nm
Distance:
500m
Temperature:
0°C To 70°C
Tx Output:
-2.9~+4.0dBm
Receiving Sensitivity:
-5.9~+4.0dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

Compliant with CMIS

Case Temperature range: 0~70

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:400G

Transmitter:  EML

Receiver: PIN

Compliant with RHOS 6

Link length up to 500m on SMF/MMF

MPO duplex connector
