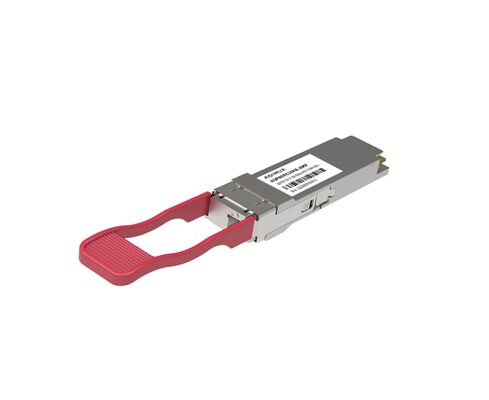

QSFP28 100G LR1 BIDI 20Km Optical Transceiver Module

QSFP28 100G LR1 BIDI 20Km Optical Transceiver Module

Brand Name: Agimux
Model Number: AQPA0DC20KB-104P /AQPA0DC20KB-401P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
QSFP28
Data Rate:
100G
Wavelength:
1271/1331nm
Distance:
20km
Temperature:
0°C To 70°C
Tx Output:
-0.2~+6.6dBm
Rx Input:
-10~+6.6dBm/-7.6dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

Compliant with SFF-8636

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:100G

Transmitter: EML

Receiver: PIN

Compliant with RHOS 6

Link length up to 20km on SMF/MMF

LC duplex connector
