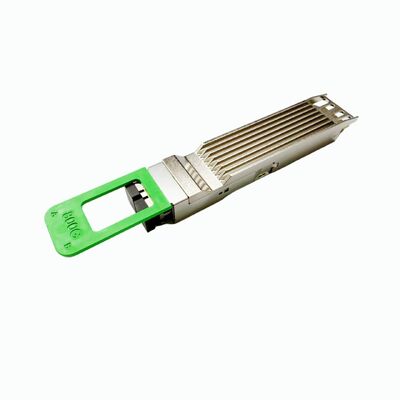

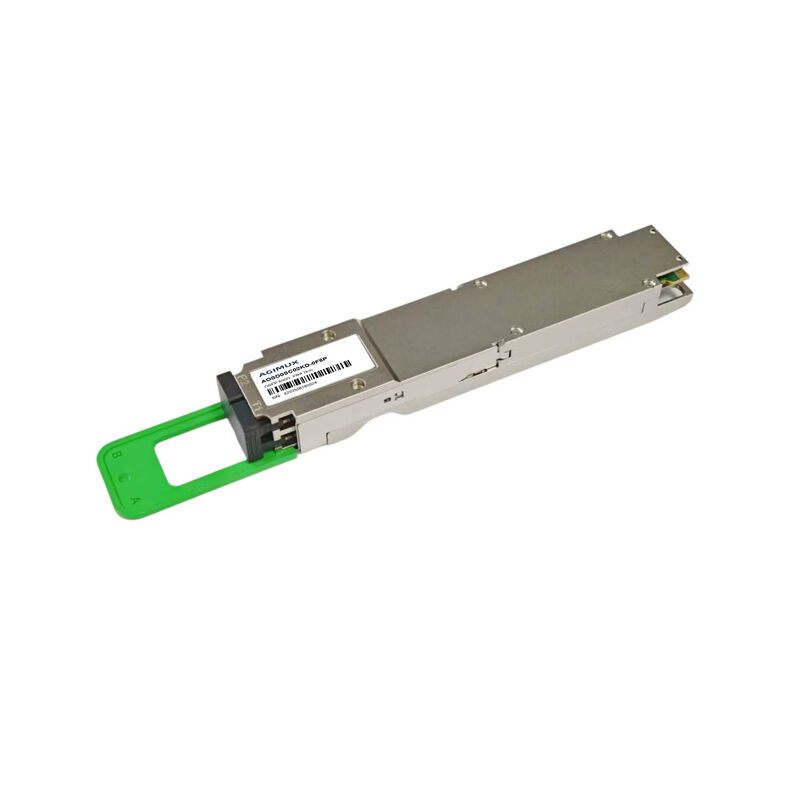

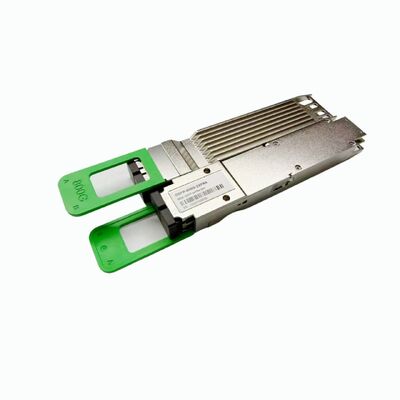

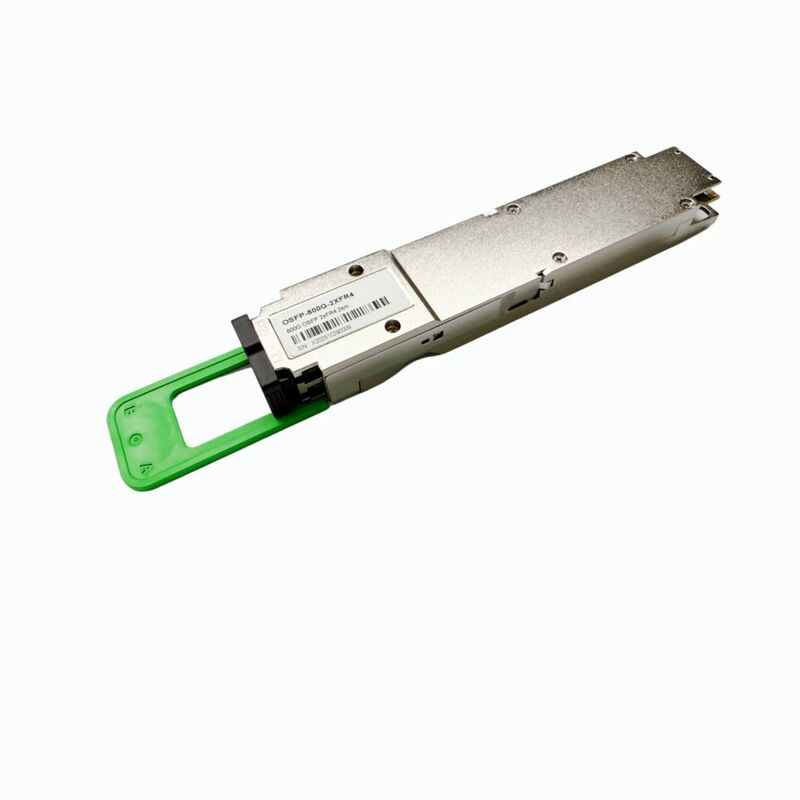

OSFP 800G CWDM4 2*FR4 Optical Transceiver Module

OSFP 800G CWDM4 2*FR4 Optical Transceiver Module

Brand Name: Agimux
Model Number: AOSD0DC02KD-2F4P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Interface:
OSFP
Data Rate:
800G
Wavelength:
CWDM4
Distance:
2km
Temperature:
0°C To 70°C
Tx Output:
-0.2~+3.7dBm
Rx Input:
-7.1~+4dBm/-4.5dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

compliant with 100G Lambda MSA standard and CMIS 5.2. Digital diagnostic functions are available via the I2C interface

Case Temperature range: 0~70

Support I2C DDM

Data Rate Range:800G

Transmitter:EML

Receiver: PIN

Compliant with RHOS 6

Link length up to 2km on SMF/MMF
