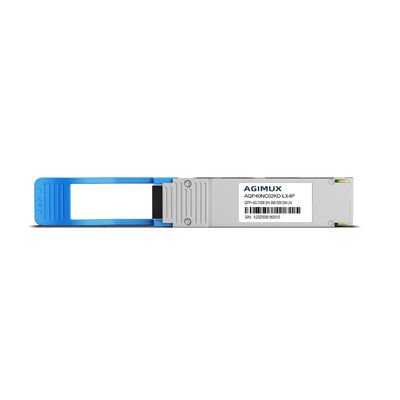

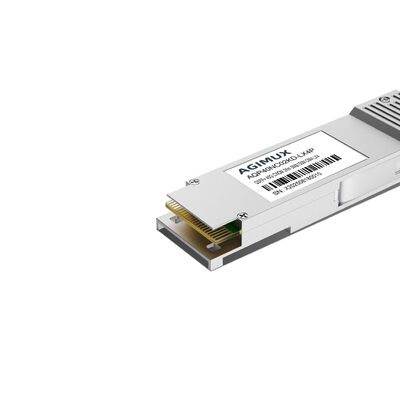

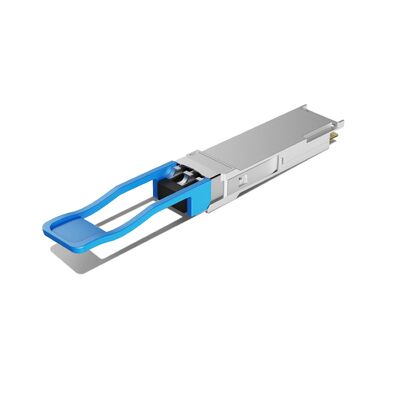

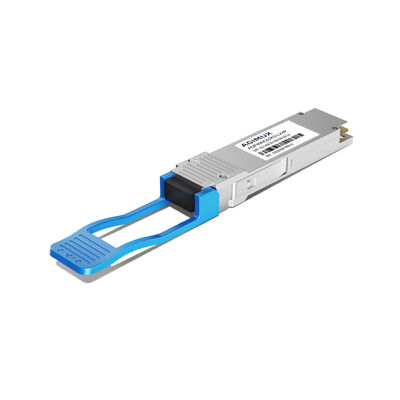

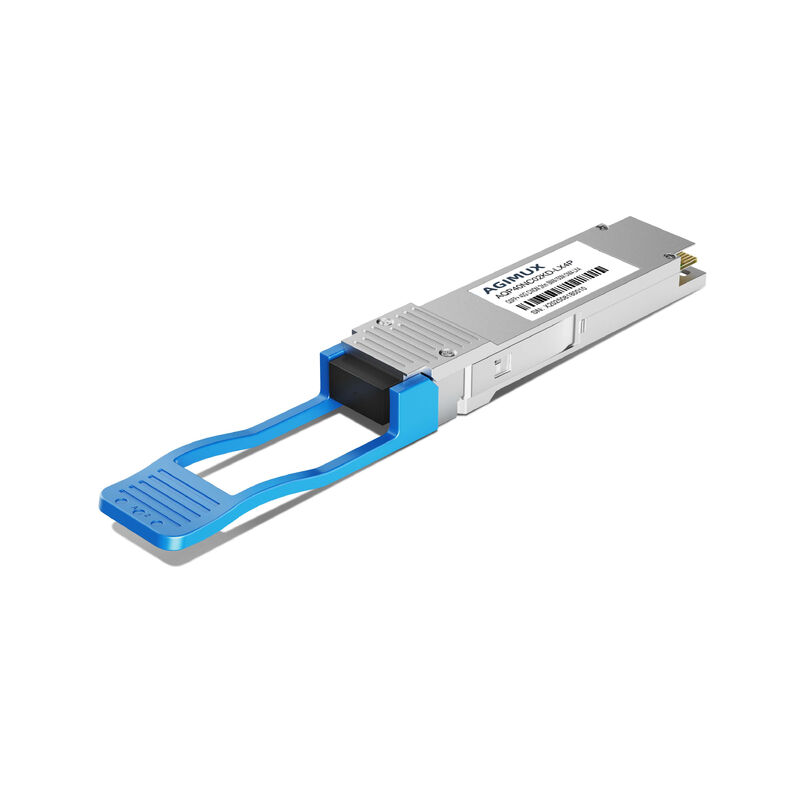

QSFP+ 40G LX4 Optical transceiver module

QSFP+ 40G LX4 Optical transceiver module

Brand Name: Agimux
Model Number: AQP40NC02KD-LX4P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Package:
QSFP+
Data Rate:
40G
Wavelength:
SM:1271、1291、1311、1331nm MM:850nm
Distance:
SM:2km MM:100m(OM3)
Temperature:
0°C To 70°C
Tx Output:
SM:-9~2.3dBm MM:-7~4.3dBm
Rx Input:
SM:-12~+3.5dBm/-10.5dBm MM:-12~+4.8dBm/-10.5dBm
Transmitter:
DML/VCSEL
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:40G

Transmitter: DML/VCSEL

Receiver: PIN

Compliant with RHOS 6

Link length up to SM:2Km /MM:100m(OM3)
