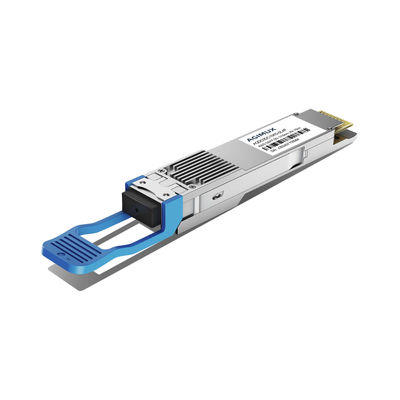

QSFP-DD,400G,1310nm,LR4,10Km，Optical trasceiver module
  • name
  • name
  • name

QSFP-DD,400G,1310nm,LR4,10Km，Optical trasceiver module

MOQ: N/A
Price: Negotiable
Standard Packaging: carton
Payment Method: T/T
Supply Capacity: 100pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Agimux
Model Number
AQDC0DC10KD-0L4P
Form Factor:
QSFP-DD
Data Rate:
400G
Wavelength:
1271nm,1291nm,1311nm,1331nm
Distance:
10km
Temperature:
0°C To 70°C
Tx Power:
-2.8~4.0dBm
Rx Input:
-9.1~4.0dBm
Transmitter:
CWDM EML
Receiver:
PIN
DDM:
Yes
Minimum Order Quantity:
N/A
Price:
Negotiable
Packaging Details:
carton
Payment Terms:
T/T
Supply Ability:
100pcs/day
Product Description

  • Compliant with CMIS

    Case Temperature range: 0~70

    Signle 3.3V power supply, Power Consumption:10W

    Support I2C DDM

    Data Rate Range:400G

    Transmitter: CWDM EML; Receiver: PIN

    Compliant with RHOS 6

    Link length up to 10km on SMF/MMF

    LC duplex connector
