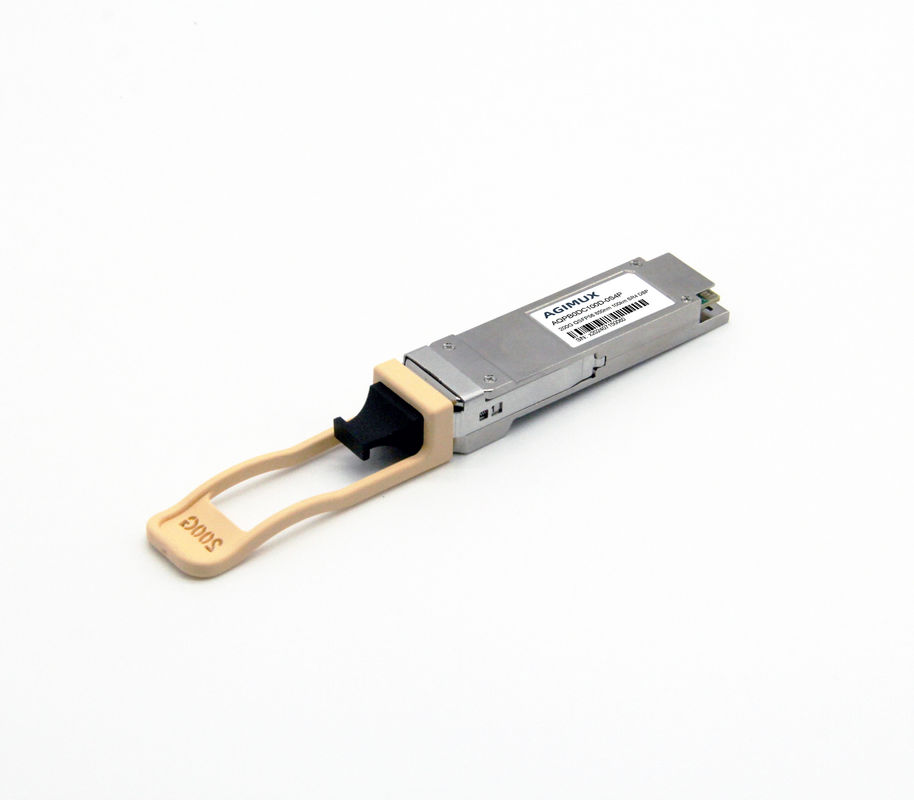

QSFP56 200G SR4 850nm 100M DSP Optical Transceiver Module

QSFP56 200G SR4 850nm 100M DSP Optical Transceiver Module

Brand Name: Agimux
Model Number: AQPB0DC100P-0S4P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Form Factor:
QSFP56
Data Rate:
200G
Wavelength:
850nm
Distance:
100m(OM4) 70m(OM3)
Temperature:
0°C To 70°C
Tx Output:
-5.5~4dBm
Rx Input:
-7.9~+4dBm
Transmittersitivity:
Vcsel
Receiver:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply

Support I2C DDM

Data Rate Range:200G

Transmitter: Vcsel

Receiver: PIN

Compliant with RHOS 6

Link length up to 100m(OM4),70m(OM3) on SMF/MMF

LC duplex connector
