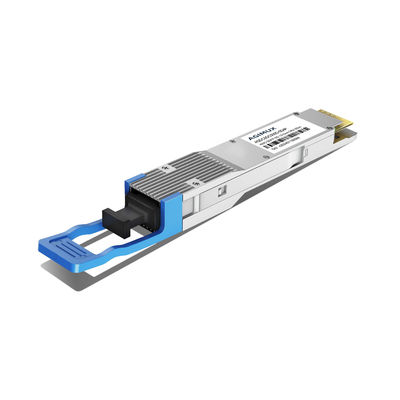

QSFP-DD 400G 1310nm DR4 500m Optical transceiver module
  • name
  • name
  • name

QSFP-DD 400G 1310nm DR4 500m Optical transceiver module

MOQ: N/A
Price: Negotiable
Standard Packaging: carton
Payment Method: T/T
Supply Capacity: 100pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Agimux
Model Number
AQDC0DC500D-0D4P
Form Factor:
Form Factor
Data Rate:
400Gbps
Distance:
500m
Wavelength:
1310nm
Temperature:
0°C To 70°C
Bail Latch Color:
Blue
Tx Output:
-2.9~4.0dBm
Receiving Sensitivity:
≤–3.9dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Minimum Order Quantity:
N/A
Price:
Negotiable
Packaging Details:
carton
Payment Terms:
T/T
Supply Ability:
100pcs/day
Product Description

Compliant with CMIS

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:12.0W

Support I2C DDM

Data Rate Range:400G

Transmitter: EML; Receiver: PIN

Compliant with RHOS 6

Link length up to 500m on SMF/MMF

LC duplex connector
