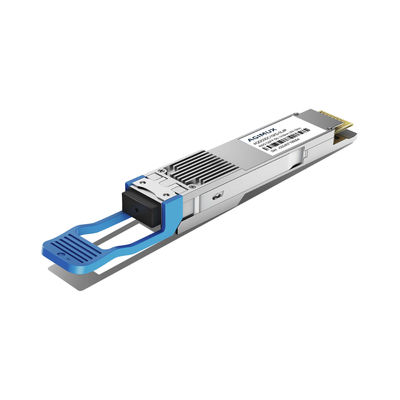

QSFP-DD 400G 1310nm LR8 10Km Optical transceiver module
  • name
  • name
  • name

QSFP-DD 400G 1310nm LR8 10Km Optical transceiver module

MOQ: N/A
Price: Negotiable
Standard Packaging: carton
Payment Method: T/T
Supply Capacity: 100pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Agimux
Model Number
AQDC0DC10KD-0L8P
Form Factor:
QSFP-DD
Data Rate:
400G
Wavelength:
1310nm
Distance:
10km
Bail Latch Color:
Blue
Temperature:
0~70°C
Tx Power:
-9.1~5.3dBm
Receiving Sensitivity:
≤–6.8dBm
Transmitter:
LWDM EML
Receiver:
PIN
DDM:
Yes
Minimum Order Quantity:
N/A
Price:
Negotiable
Packaging Details:
carton
Payment Terms:
T/T
Supply Ability:
100pcs/day
Product Description

Compliant with CMIS

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:10W

Support I2C DDM

Data Rate Range:400G

Transmitter: LWDM  EML; Receiver: PIN

Compliant with RHOS 6

Link length up to 10km on SMF/MMF

LC duplex connector
