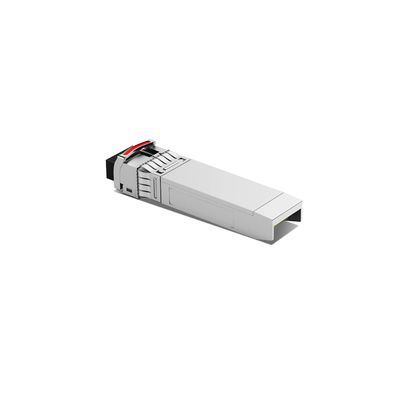

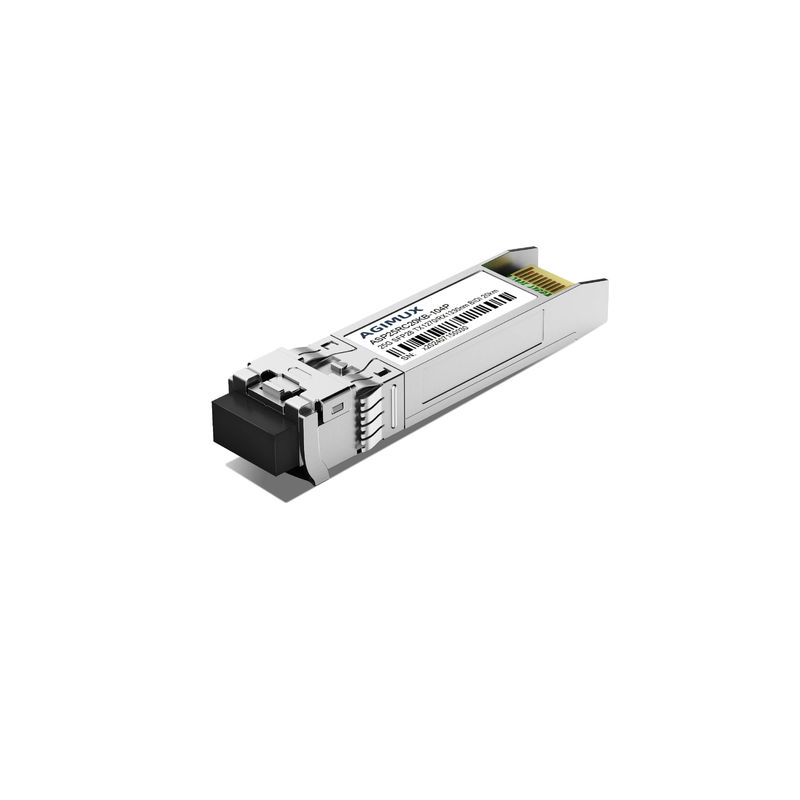

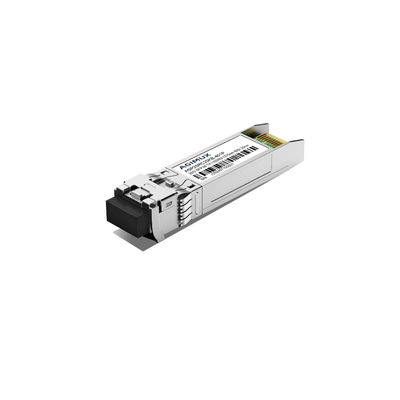

SFP28 25G BIDI 20Km Optical Transceiver Module

SFP28 25G BIDI 20Km Optical Transceiver Module

Brand Name: Agimux
Model Number: ASP25RC20KB-104P/401P
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Interface:
SFP28
Data Rate:
25Gbps
Wavelength:
Tx1270nm/Rx1330nm(Tx1330nm/Rx1270nm)
Distance:
20km
Bail Latch Color:
Blue/Red
Operation Temperature:
0°C To 70°C
Tx Power:
0~6dBm
Receiver Sensitivity:
≤-14dB
Detector:
PIN
DDM:
Yes
Packaging Details:
Carton
Product Description



Compliant with SFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:1.2W

Support I2C DDM

Data Rate Range:25G

Transmitter:DFB BiDi ; Receiver: PIN

Compliant with RHOS 6

Link length up to 20km on SMF/MMF

LC connector
