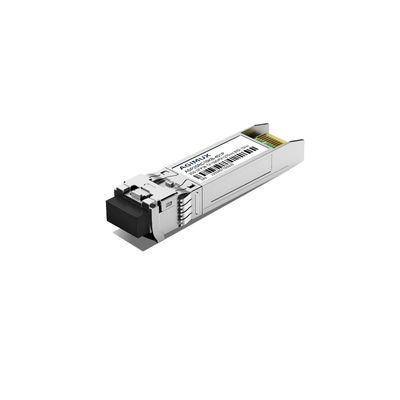

SFP28 25G BIDI TX33/RX27(TX27/RX33) 10Km Optical transceiver module
  • name
  • name
  • name

SFP28 25G BIDI TX33/RX27(TX27/RX33) 10Km Optical transceiver module

MOQ: N/A
Price: Negotiable
Standard Packaging: carton
Payment Method: T/T
Supply Capacity: 100pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Agimux
Model Number
ASP25RC10KB-401P/104P
Form Factor:
SFP28
Data Rate:
25G
Wavelength:
Tx1330nm/Rx1270nm(Tx1270nm/Rx1330nm)
Transmission Distance:
10km
Bail Latch Color:
Purple/blue
Operation Temperature:
0~70°C
Optical Power:
-2~4dBm
Receiver Sensitivity:
≤-13.3dB
Receiver:
PIN
DDM:
Yes
Minimum Order Quantity:
N/A
Price:
Negotiable
Packaging Details:
carton
Payment Terms:
T/T
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:1W

Support I2C DDM

Data Rate Range:25G

Transmitter: DFB BiDi; Receiver: PIN

Compliant with RHOS 6

Link length up to 10km on SMF/MMF

LC connecto
