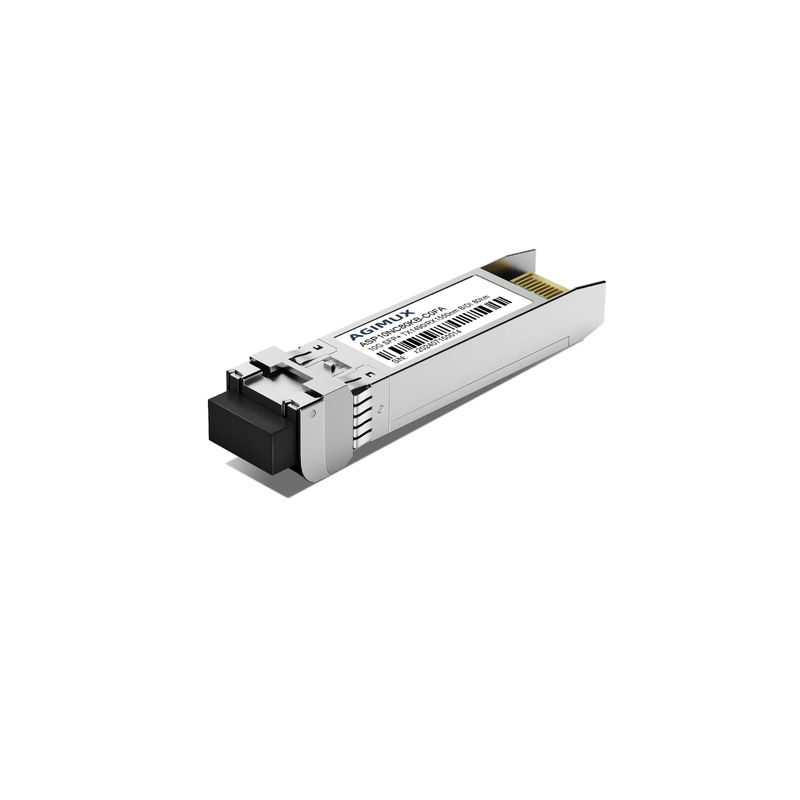

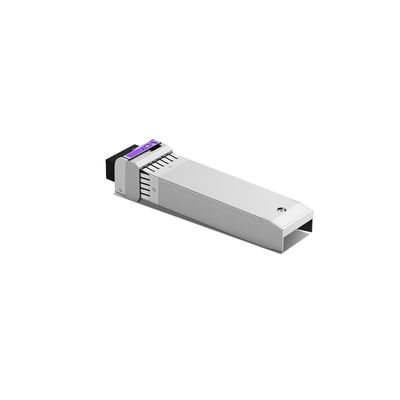

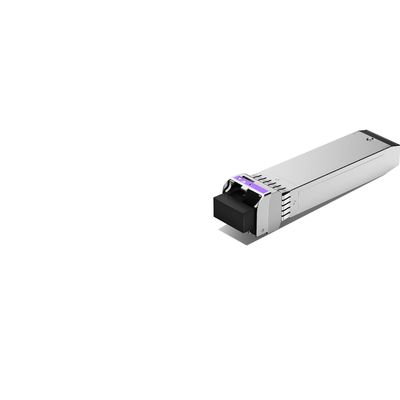

SFP+ 10G TX49/RX55(TX55/RX49) 80Km Optical transceiver module

SFP+ 10G TX49/RX55(TX55/RX49) 80Km Optical transceiver module

Brand Name: Agimux
Model Number: ASP10NC80KB-C0FA/F0CA
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
SFP+
Data Rate:
10Gbps
Wavelength:
Tx1490nm/Rx1550nm (Tx1550nm/Rx1490nm)
Distance:
80km
Bail Latch Color:
Purple/yellow
Temperature:
Yes
Optical Power:
0~5dB
Receiver Sensitivity:
≤-23dB
Transmitter:
EML
Receiver:
APD
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description



Compliant with SFF-8472

Case Temperature range: 0~70/-40~85

Signle 3.3V power supply, Power Consumption:

Support I2C DDM

Data Rate Range:9.9~11.3G(with CDR), 1~11G(without CDR)

Transmitter: EML; Receiver: APD

Compliant with RHOS 6

Link length up to 80km on SMF/MMF

LC connector
