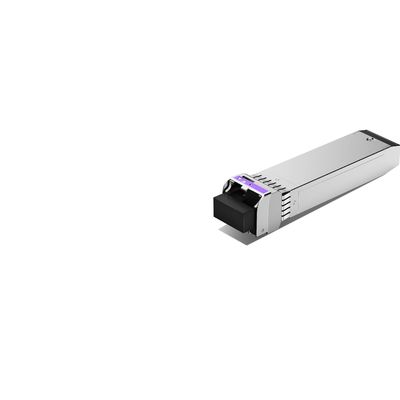

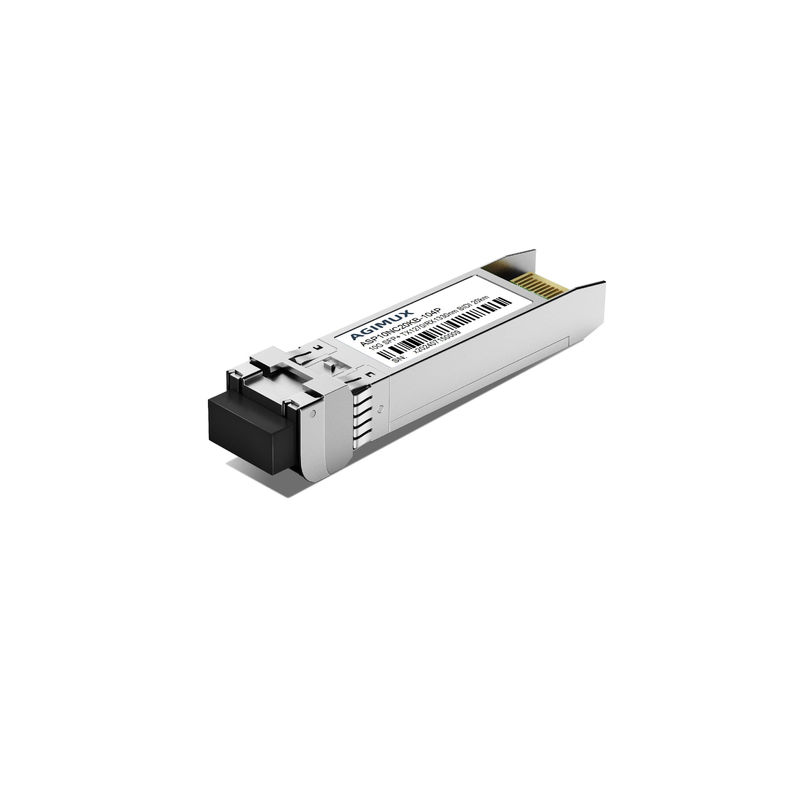

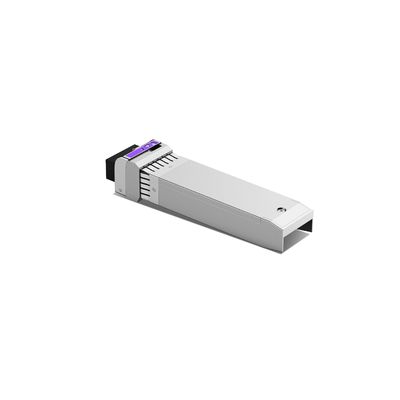

SFP+ 10G Tx33/Rx27(Tx27/Rx33) 20Km Optical transceiver module

SFP+ 10G Tx33/Rx27(Tx27/Rx33) 20Km Optical transceiver module

Brand Name: Agimux
Model Number: ASP10NC20KB-401P/104P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
SFP+
Data Rate:
10G
Wavelength:
Tx1330nm/Rx1270nm Tx1270nm/Rx1330nm
Distance:
20km
Bail Latch Color:
Purple/blue
Temperature:
0~70°C/-40°C ~+85°C
Tx Power:
-6~3dBm
Receiver Sensitivity:
< -14.4dBm
Receiver:
PIN
Transmitter:
DFB
DDL:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70/-40~85

Signle 3.3V power supply, Power Consumption:1W

Support I2C DDM

Data Rate Range:10G

Transmitter: DFB; Receiver: PIN

Compliant with RHOS 6

Link length up to 20km on SMF/MMF

LC connector
