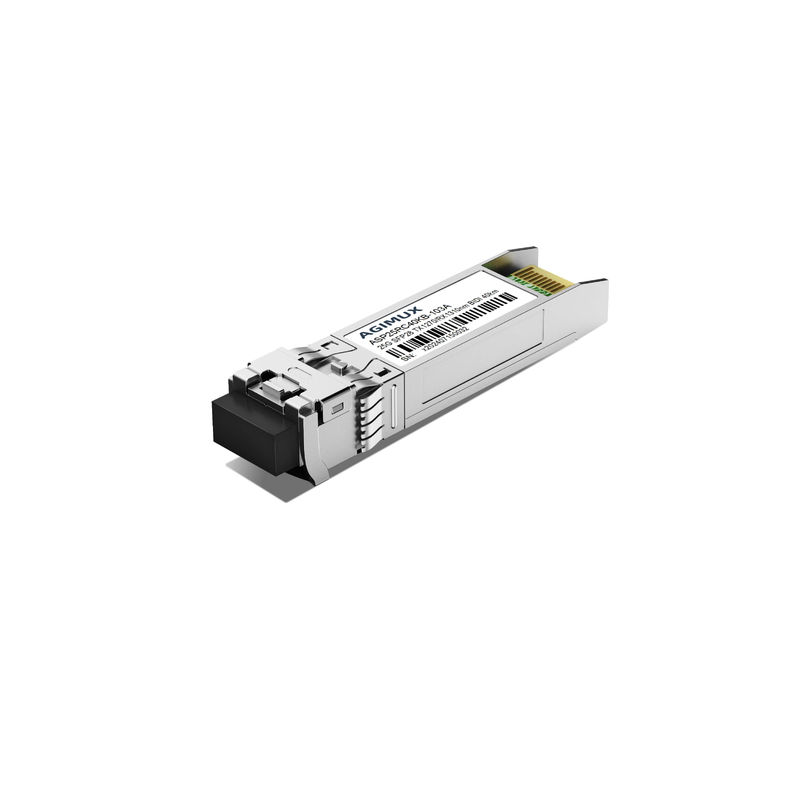

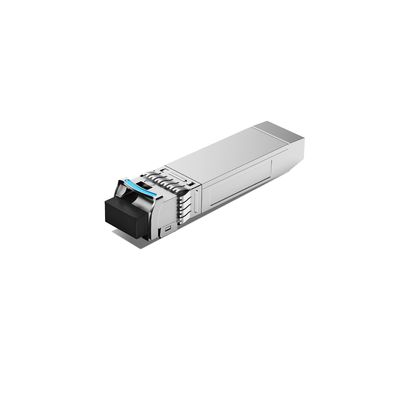

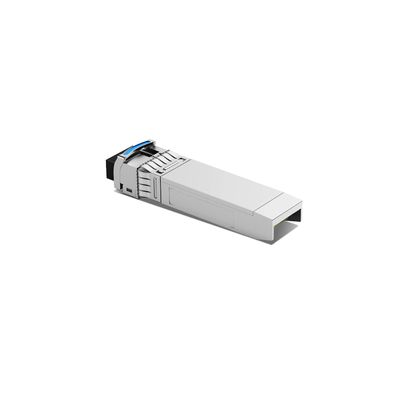

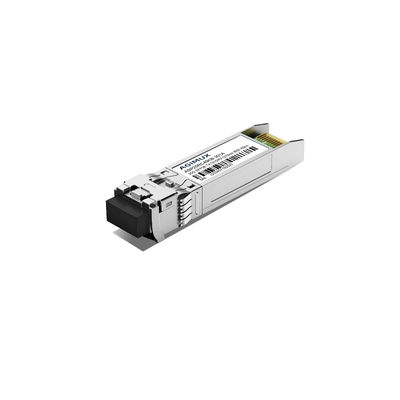

SFP28 25G BIDI TX27/RX31(TX31/RX27) 40Km Optical transceiver module

SFP28 25G BIDI TX27/RX31(TX31/RX27) 40Km Optical transceiver module

Brand Name: Agimux
Model Number: ASP25RC40KB-103A/301A
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
SFP28
Data Rate:
25Gbps
Wavelength:
Tx1270nm/Rx1310nm(Tx1310nm/Rx1270nm)
Distance:
40km
Bail Latch Color:
Blue/red
Operation Temperature:
0~70°C
Tx Power:
<-18dBm
Receiver Sensitivity:
<-18dBm
Transmitter:
DFB BiDi
Receiver:
APD
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:1.2W

Support I2C DDM

Data Rate Range:25G

Transmitter: DFB BiDi; Receiver: APD

Compliant with RHOS 6

Link length up to 40km on SMF/MMF

LC connector
