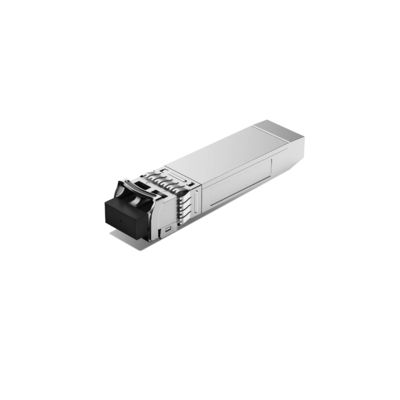

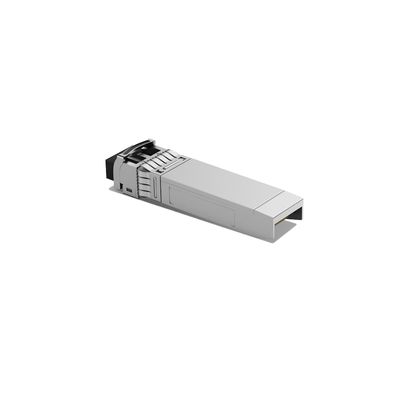

SFP28 25G 850nm 100m Optical transceiver module

SFP28 25G 850nm 100m Optical transceiver module

Brand Name: Agimux
Model Number: ASP25RC100C-085P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
SFP28
Data Rate:
25Gbps
Wavelength:
850nm
Distance:
100m
Bail Latch Color:
Black
Temperature:
0~70°C
Tx Power:
-8.4~2.4dBm
Receiving Sensitivity:
<-6dBm
Transmitter:
VCSEL
Receiver:
PIN
DDM:
25Gbps
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:1W

Support I2C DDM

Data Rate Range:25G

Transmitter: VCSEL; Receiver: PIN

Compliant with RHOS 6

Link length up to 100m on SMF/MMF

MPO Connector
