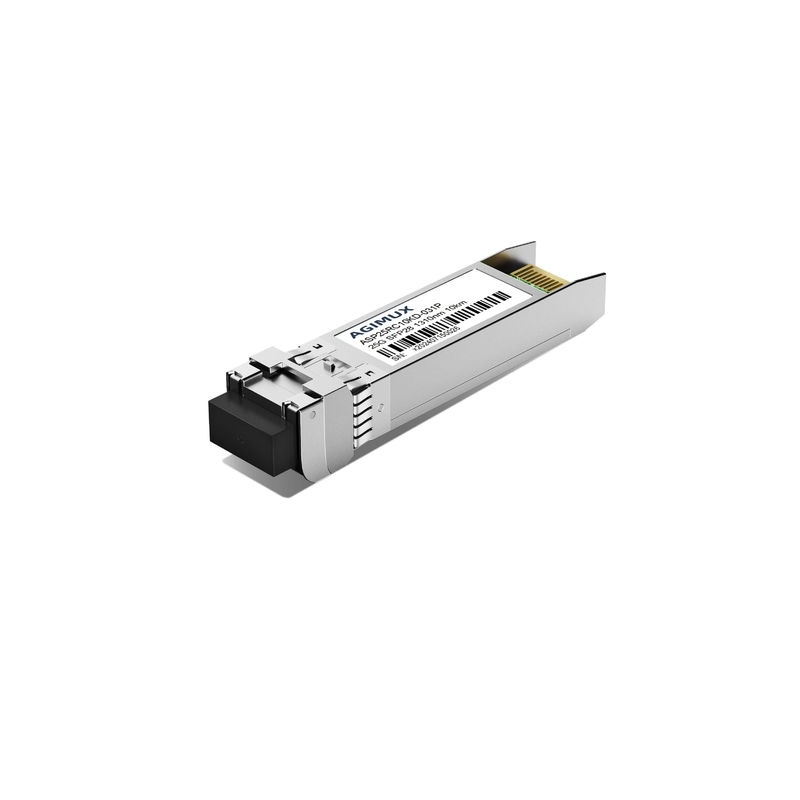

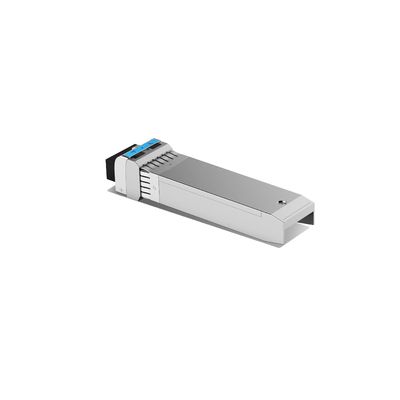

SFP28 25G 1310nm 10Km Optical transceiver module

SFP28 25G 1310nm 10Km Optical transceiver module

Brand Name: Agimux
Model Number: ASP25RC10KD-031P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
SFP28
Data Rate:
25Gbps
Wavelength:
1310nm
Distance:
10km
Bail Latch Color:
Blue
Operation Temperature:
0°~+70°C/-40~+85°C
TX Power:
-4.5~2dBm
Receiver Sensitivity:
≤-12dBm
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8472

Case Temperature range: 0~70/-40~85

Signle 3.3V power supply, Power Consumption:1.2W

Support I2C DDM

Data Rate Range:25G

 Receiver: PIN

Compliant with RHOS 6

Link length up to 10km on SMF/MMF

LC duplex connector
