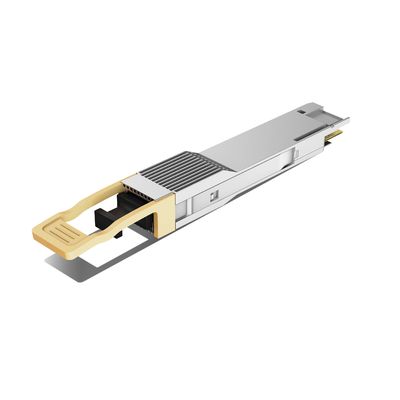

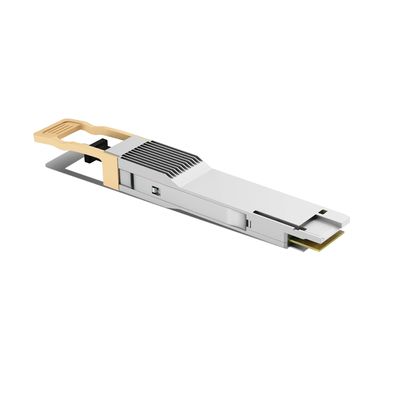

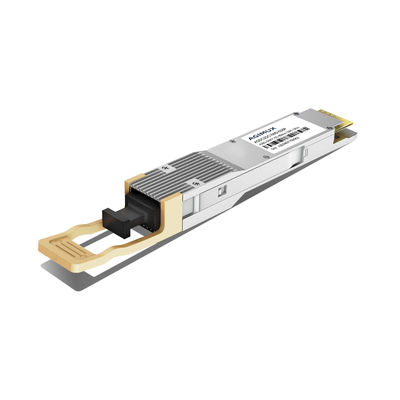

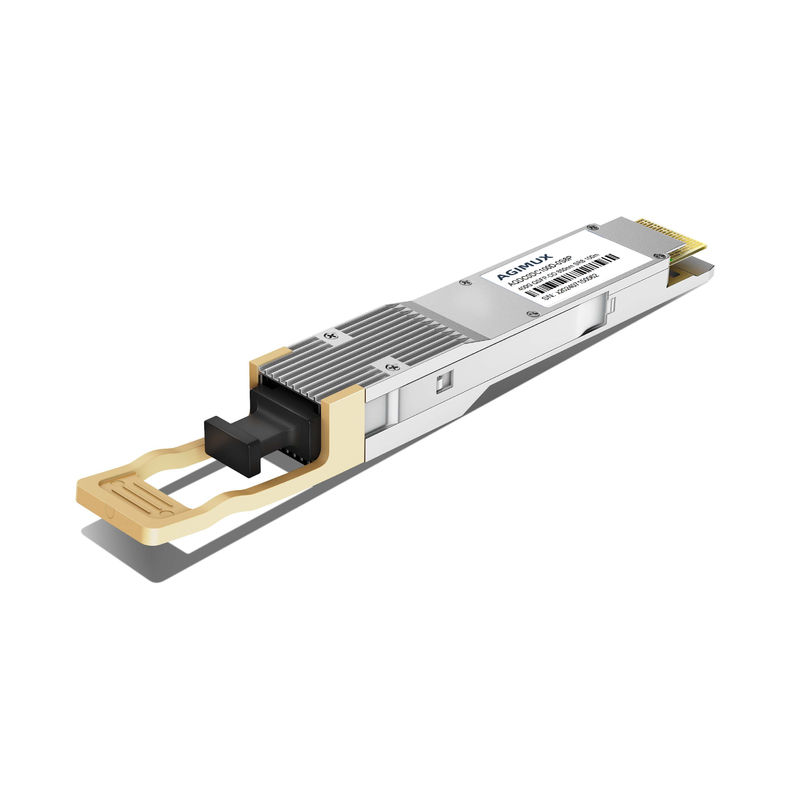

QSFP-DD 400G 850nm SR8 100m Optical transceiver

QSFP-DD 400G 850nm SR8 100m Optical transceiver

Brand Name: Agimux
Model Number: AQDC0DC100D-0S8P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Interface:
QSFP-DD
Data Rate:
400G
Wavelength:
Wavelength
Distance:
100m
Temperature:
0°C To 70°C
Bail Latch Color:
Buff
Tx Power:
-7.6~2.4dBm
Receiving Sensitivity:
-9.5dBm
Transmitter:
VCSEL 850nm
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:2.0W

Support I2C DDM

Data Rate Range:100G

Transmitter:VCSEL 850nm ; Receiver: PIN

Compliant with RHOS 6

Link length up to 100m on SMF/MMF

MPO Connector
