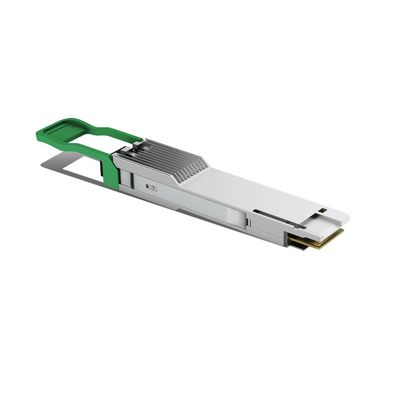

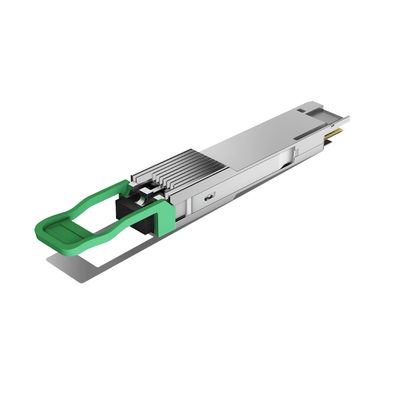

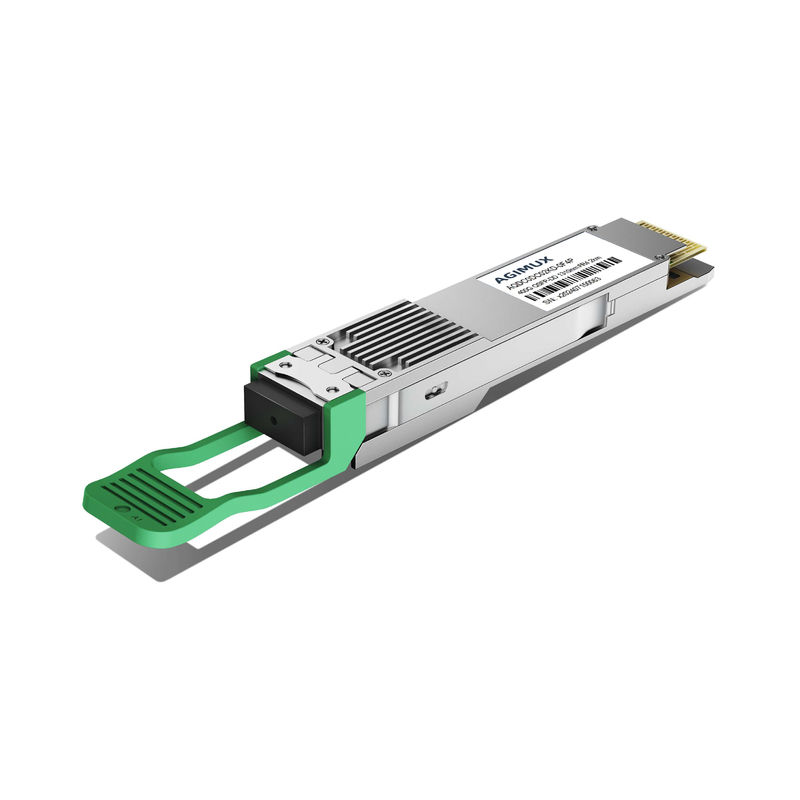

QSFP-DD 400G 1310nm FR4 2Km Optical transceiver module

QSFP-DD 400G 1310nm FR4 2Km Optical transceiver module

Brand Name: Agimux
Model Number: AQDC0DC02KD-0F4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP-DD
Data Rate:
400Gbps
Wavelength:
4 LAN-WDM
Distance:
2Km
Temperature:
0~70°C
Bail Latch Color:
Green
Tx Power:
-3.5~3.5dBm
Receiving Sensitivity:
≤–4.6dBm
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description



Compliant with CMIS

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:12.0W

Support I2C DDM

Data Rate Range:400G

Transmitter:EML; Receiver: PIN

Compliant with RHOS 6

Link length up to 2Km on SMF/MMF

LC duplex connector
