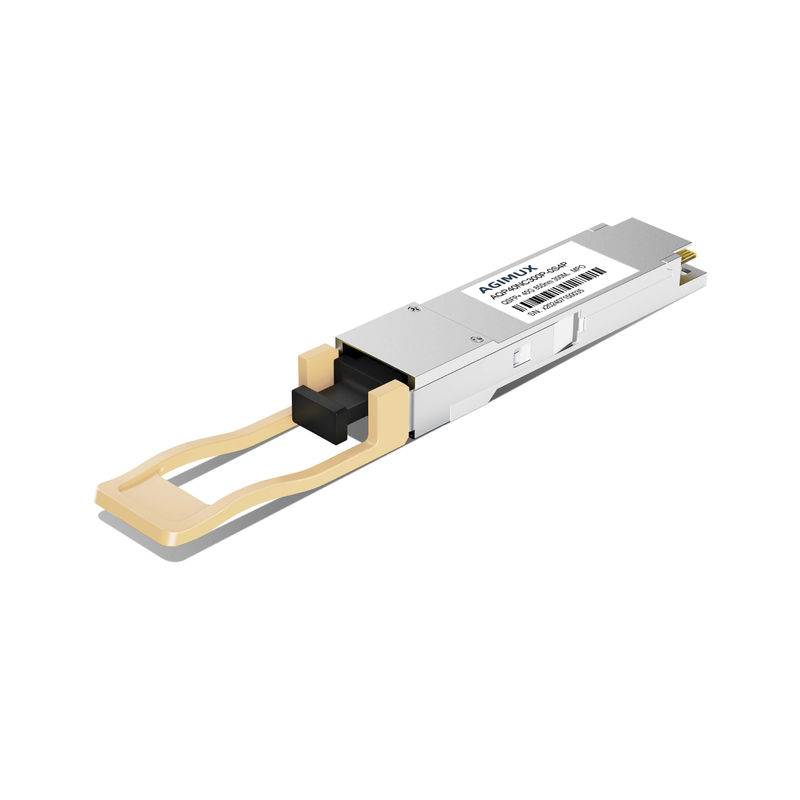

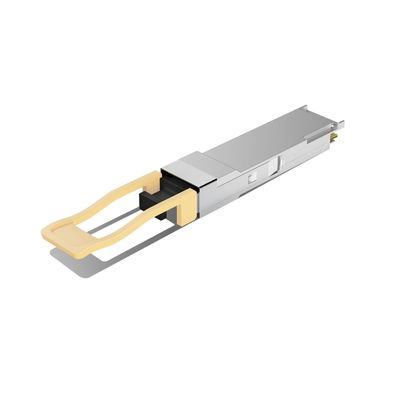

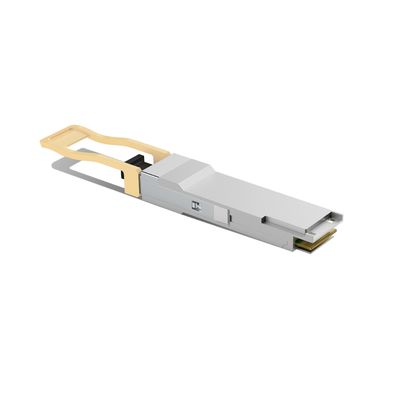

QSFP+ 40G 850nm 300m Optical transceiver module

QSFP+ 40G 850nm 300m Optical transceiver module

Brand Name: Agimux
Model Number: AQP40NC300P-0S4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Package:
QSFP+
Data Rate:
40G
Wavelength:
850nm
Distance:
300M
Bail Latch Color:
Bail Latch Color
Temperature:
0~70°C
Tx Power:
-7.1~1.9dBm
Receiving Sensitivity:
<-10.3dBm
Transmitter:
VCSEL
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description



Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:1.5W

Support I2C DDM

Data Rate Range:40G

Transmitter: VCSEL; Receiver: PIN

Compliant with RHOS 6

Link length up to 300m on SMF/MMF

MPO Connector
