40G Optical Transceiver
Created with Pixso.

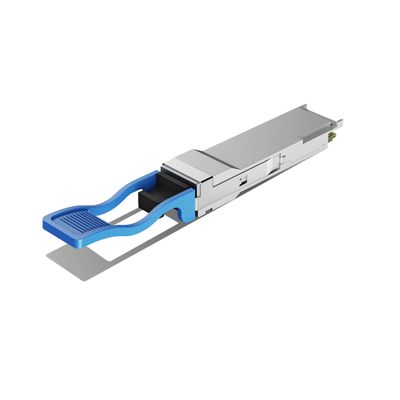

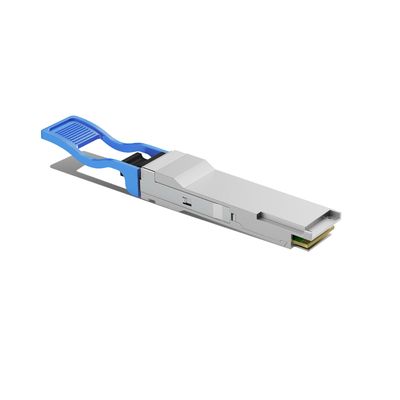

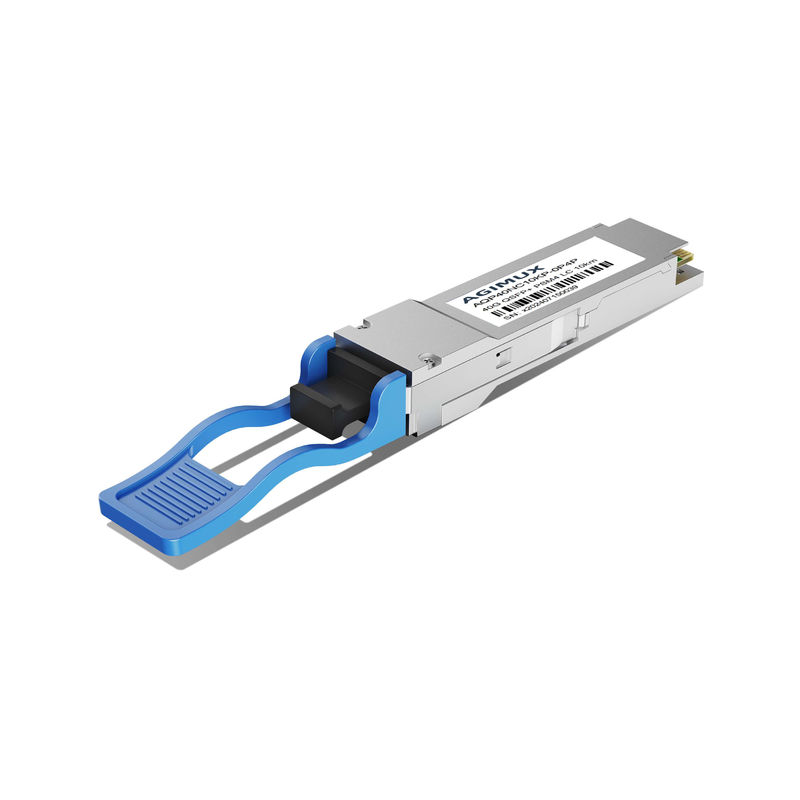

QSFP+ 40G 1310 10Km PSM4 Optical transceiver

QSFP+ 40G 1310 10Km PSM4 Optical transceiver

Brand Name: Agimux
Model Number: AQP40NC10KP-0P4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP+
Data Rate:
40G
Wavelength:
PSM4
Distance:
10km
Bail Latch Color:
Blue
Temperature:
0~70°C
Tx Power:
-6~-1dBm
Sensitivity:
<-14.4dBm
Transmitter:
DFB
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description
  • Compliant with SFF-8636

    Signle 3.3V power supply, Power Consumption:2.5W

    Support I2C DDM

    Data Rate Range:40G

    Transmitter: DFB; Receiver: PIN

    Compliant with RHOS 6

    Link length up to 10km on SMF/MMF

    LC duplex connector
