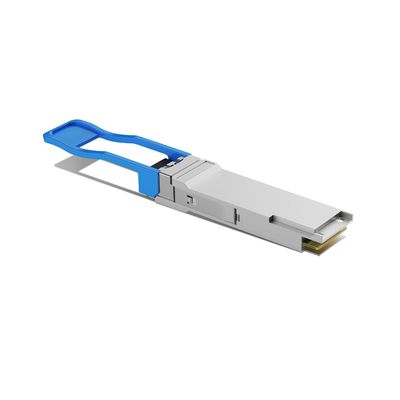

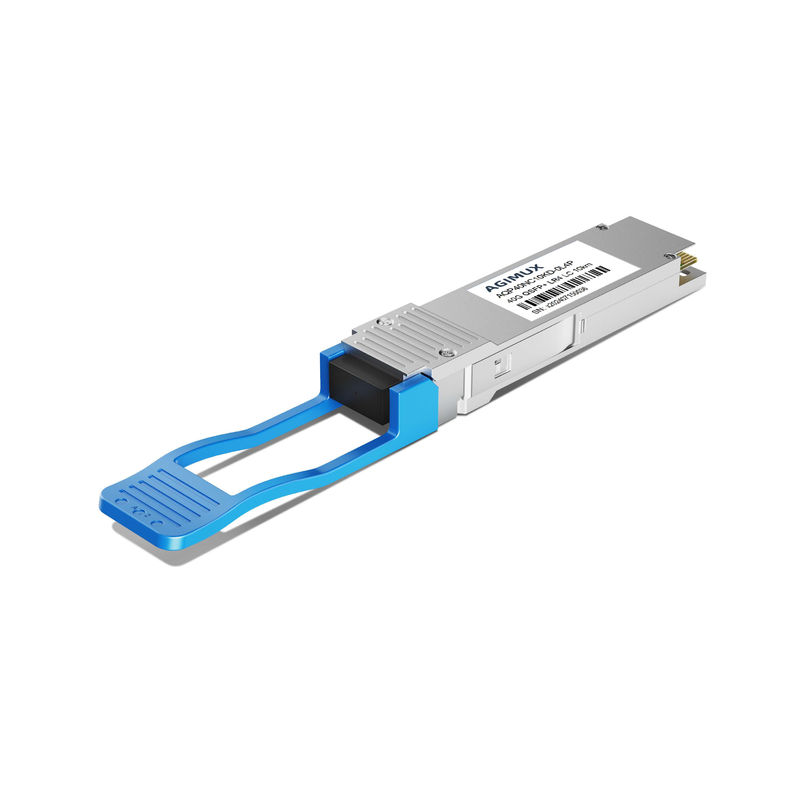

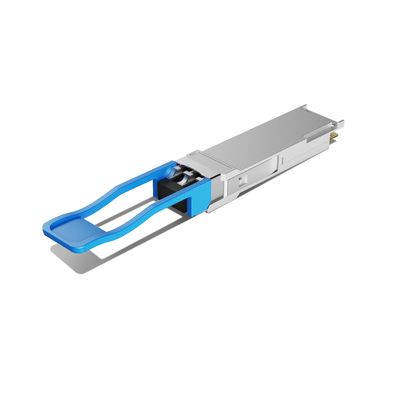

QSFP+ 40G 1310 10Km LR4 Optical transceiver module

QSFP+ 40G 1310 10Km LR4 Optical transceiver module

Brand Name: Agimux
Model Number: AQP40NC10KD-0L4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP+
Data Rate:
40G
Wavelength:
1310nm
Distance:
10km
Bail Latch Color:
Blue
Temperature:
0~70°C
Tx Power:
-7~2.3dBm
Sensitivity:
<-11dBm
Transmitter:
DFB CWDM
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:3.5W

Support I2C DDM

Data Rate Range:40G

Transmitter: DFB CWDM; Receiver: PIN

Compliant with RHOS 6

Link length up to 10km on SMF/MMF

LC duplex connector
