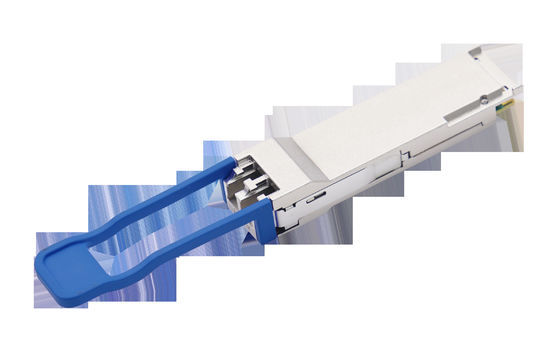

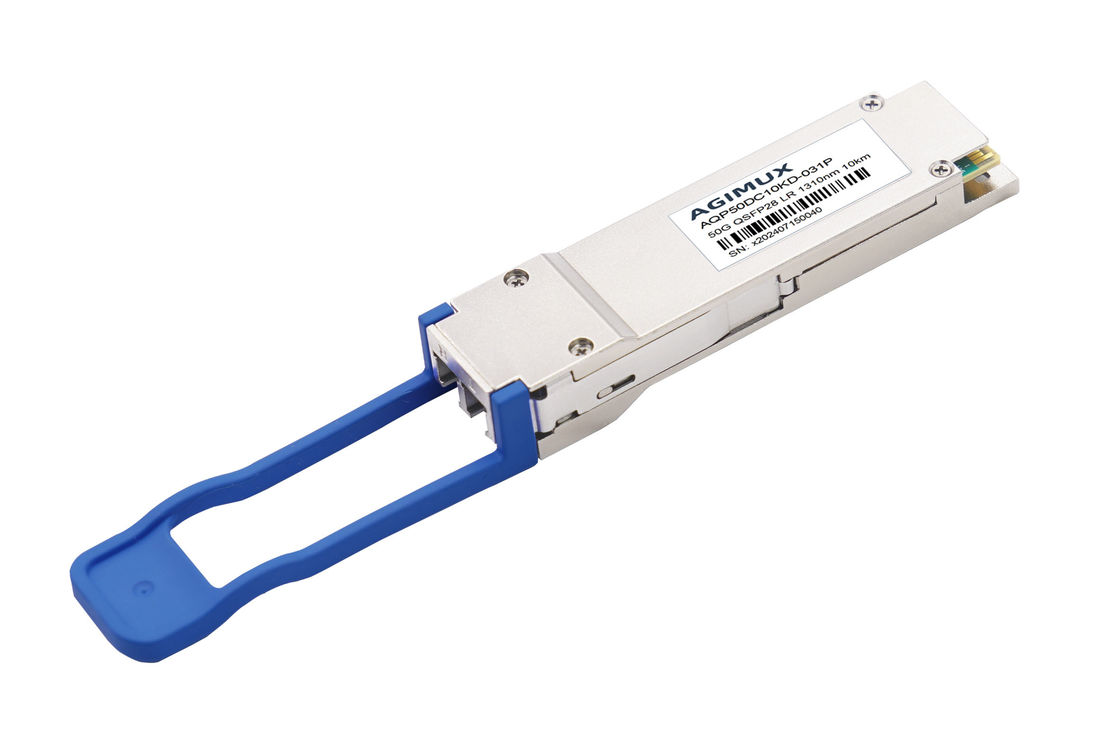

QSFP28 50G LR 1310nm 10Km Optical transceiver module

QSFP28 50G LR 1310nm 10Km Optical transceiver module

Brand Name: Agimux
Model Number: AQP50DC10KD-031P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP28
Data Rate:
50Gbps
Wavelength:
1310nm
Transmission Distance:
10km
Bail Latch Color:
Blue
Operation Temperature:
0~70℃
Tx Power:
-4.5~4.2dBm
Receiver Sensitivity:
<-8.4dBm
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant withSFF-8472

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:3.5W

Support I2C DDM

Data Rate Range:50G

Transmitter: DFB; Receiver: PIN

Compliant with RHOS 6

Link length up to 10km on SMF/MMF

LC duplex connector
