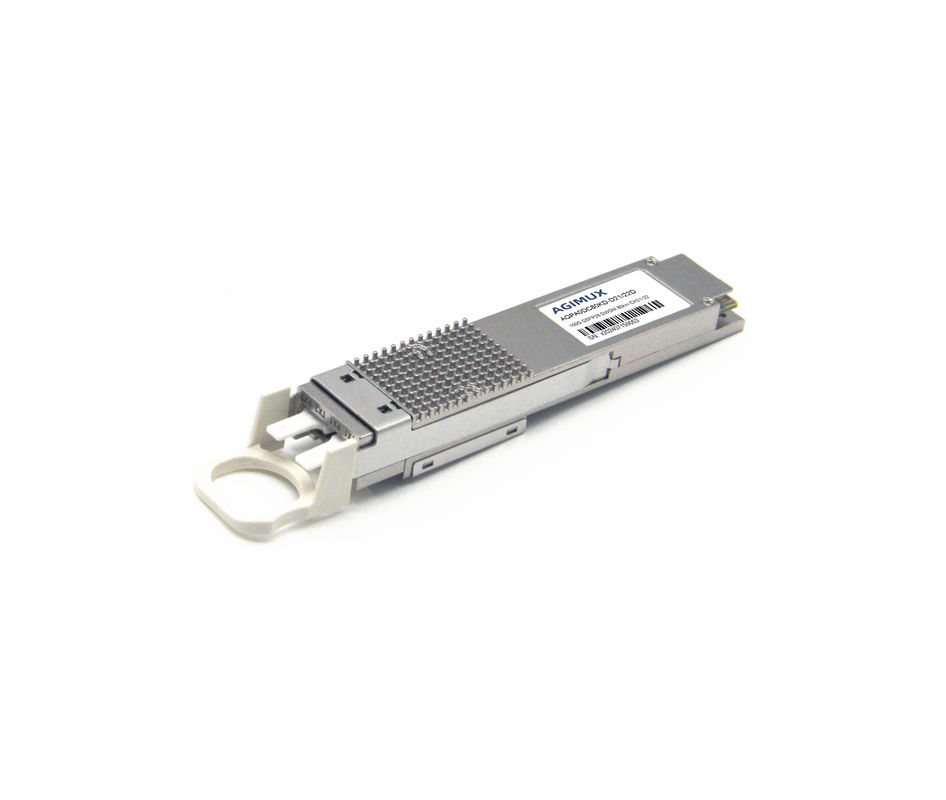

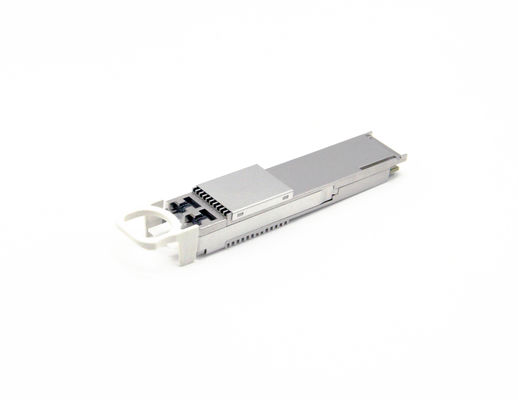

QSFP28 100G DWDM 80km Optical transceiver module

QSFP28 100G DWDM 80km Optical transceiver module

Brand Name: Agimux
Model Number: AQPA0DC80KD-DXXD
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
Form Factor
Data Rate:
100G
Distance:
80km
Temp:
0~70℃
Wavelength:
C13-C59
Bail Latch Color:
Bail Latch Color
Optical Power:
-1 ~ +4 DBm
Detector:
PIN
Sensitivity:
-12.5 DBm @BER 4E-3
Transmitter:
EML
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description



Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:

Support I2C DDM

Data Rate Range:100G

Transmitter: EML; Receiver: PIN+SOA

Compliant with RHOS 6

Link length up to 80km on SMF/MMF

LC duplex connector
