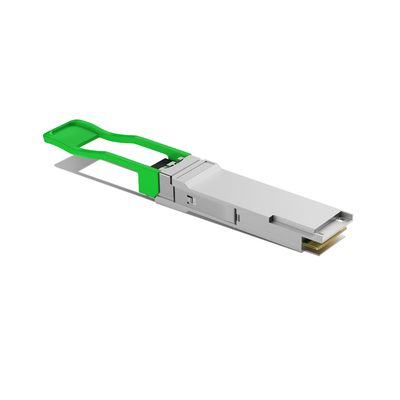

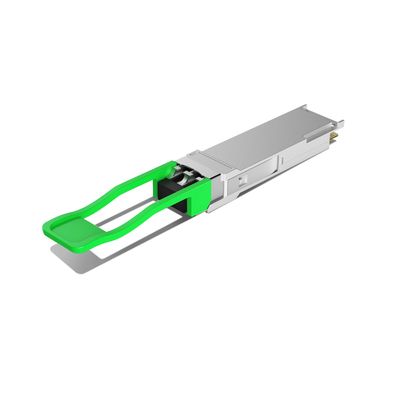

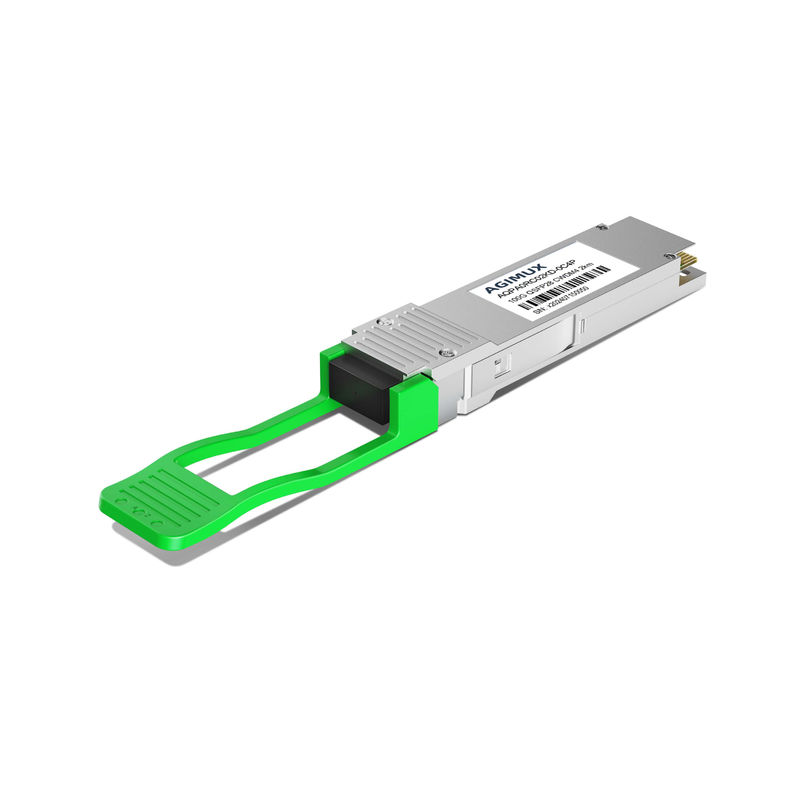

QSFP28 100G CWDM4 2Km Optical transceiver module

QSFP28 100G CWDM4 2Km Optical transceiver module

Brand Name: Agimux
Model Number: AQPA0RC02KD-0C4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Optical Connect:
QSFP28
Data Rate:
100G
Wavelength:
CWDM4
Distance:
2KM
Temperature:
0~70°C
Bail Latch Color:
Bail Latch Color
Tx Output:
-11.5dBm~2.5dBm
Receiving Sensitivity:
≤–10dBm
Transmitter:
DML
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70/-40~85

Signle 3.3V power supply, Power Consumption:≤3.5W

Support I2C DDM

Data Rate Range:100G

Transmitter: DML; Receiver: PIN

Compliant with RHOS 6

Link length up to 2km on SMF/MMF

LC duplex connector
