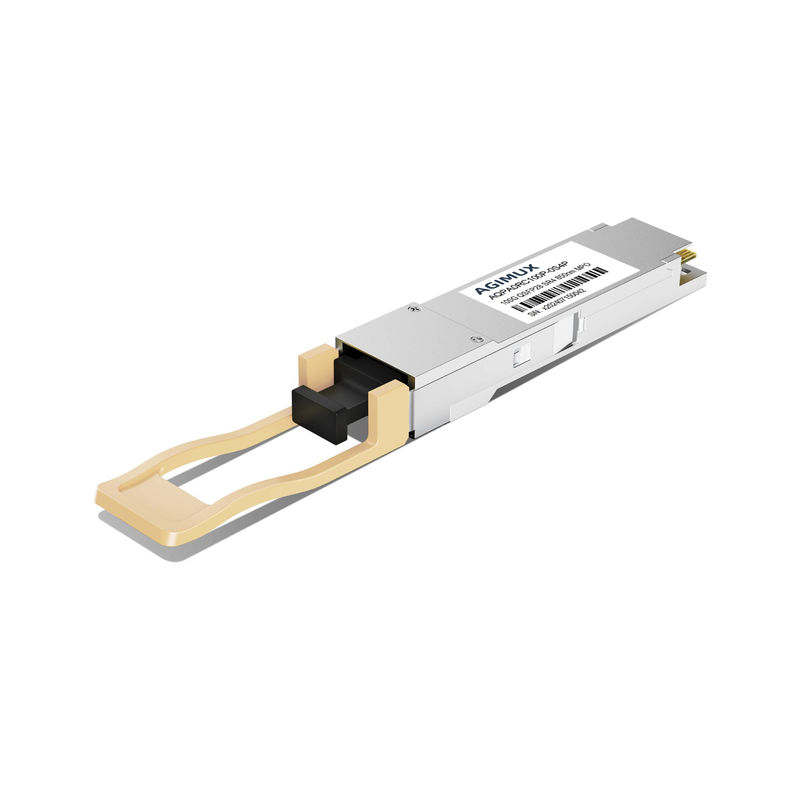

QSFP28 100G 850nm SR4 100M MPO Optical transceiver module

QSFP28 100G 850nm SR4 100M MPO Optical transceiver module

Brand Name: Agimux
Model Number: AQPA0RC100P-0S4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP28
Data Rate:
100G
Wavelength:
850nm
Distance:
100m
Bail Latch Color:
Buff
Temperature:
Temperature
Tx Power:
-8.4~2.4dBm
Receiving Sensitivity:
≤–8.5dBm
Transmitter:
VCSEL 850nm
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:

Support I2C DDM

Data Rate Range:

Transmitter: VCSEL 850nm; Receiver: PIN

Compliant with RHOS 6

Link length up to 100m on SMF/MMF

MPO Connector
