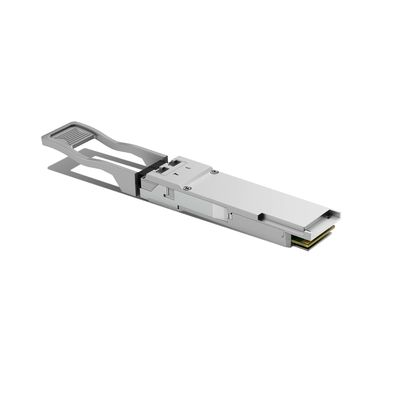

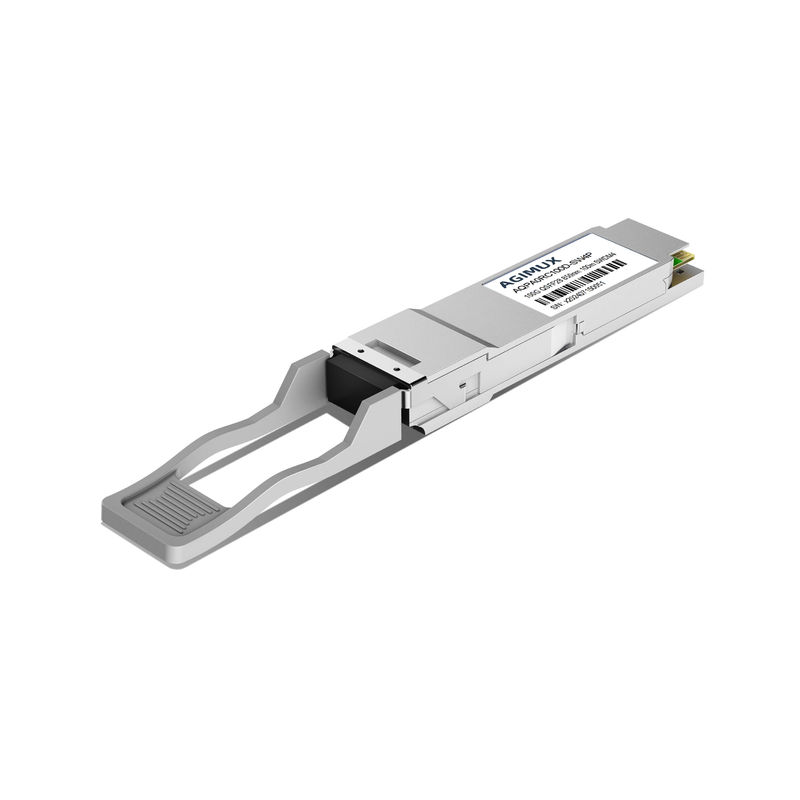

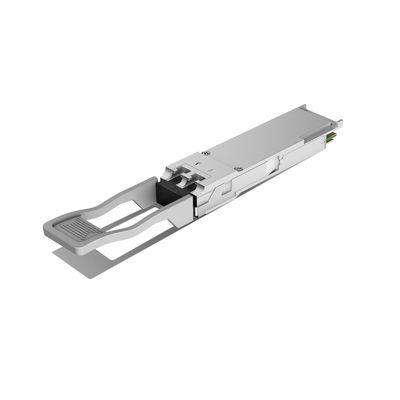

QSFP28 100G 850nm 100m SWDM4 Optical transceiver module

QSFP28 100G 850nm 100m SWDM4 Optical transceiver module

Brand Name: Agimux
Model Number: AQPA0RC100D-SW4P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Package:
QSFP28
Data Rate:
100G
Wavelength:
850nm
Distance:
100M
Temperature:
0~70°C
Bail Latch Color:
Off-white
Tx Power:
-8.4~2.4dBm
Receiving Sensitivity:
-9.4dBm
Transmitter:
VCSEL
Receiver:
PIN
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:2.5W

Support I2C DDM

Data Rate Range:100G

Transmitter: VCSEL 850nm; Receiver: PIN

Compliant with RHOS 6

Link length up to 100m on SMF/MMF

MPO Connector
