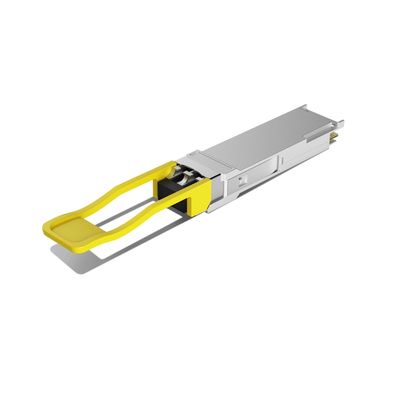

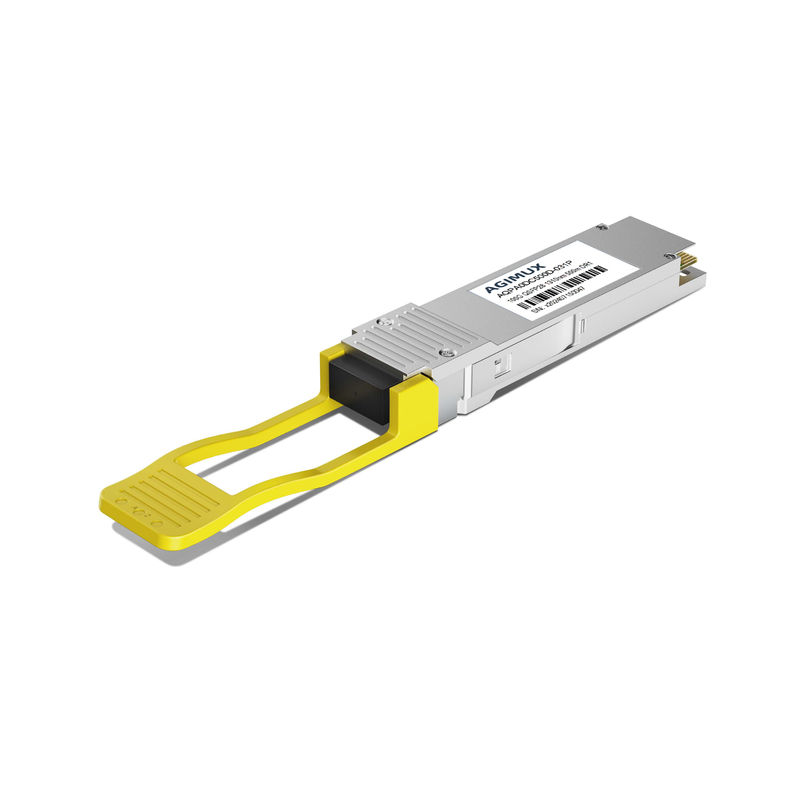

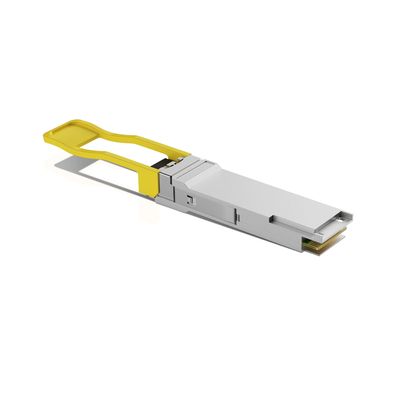

QSFP28 100G 1310nm 500m DR1 Optical transceiver module

QSFP28 100G 1310nm 500m DR1 Optical transceiver module

Brand Name: Agimux
Model Number: AQPA0DC500D-031P
MOQ: N/A
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Form Factor:
QSFP28
Data Rate:
100G
Wavelength:
1310nm
Distance:
500M
Temperature:
100Gbps
Bail Latch Color:
Yellow
Tx Output:
-5.9~4dBm
Receiving Sensitivity:
-4.5dBm
Transmitter:
EML
Receiver:
Yes
DDM:
Yes
Packaging Details:
carton
Supply Ability:
100pcs/day
Product Description

Compliant with SFF-8636

Case Temperature range: 0~70

Signle 3.3V power supply, Power Consumption:4W

Support I2C DDM

Data Rate Range:100G

Transmitter: EML; Receiver: PIN

Compliant with RHOS 6

Link length up to 500m  on SMF/MMF

LC duplex connector
